Описание

Material: Rubber
Classification: HTD 5M-12mm ordinary (price per meter) HTD 5M-15mm ordinary (price per meter) HTD 5M-20mm ordinary (price per meter) RPP P5M-12mm ordinary (price per meter) RPP P5M-15mm Ordinary model (price per meter) STD S5M-12mm common model (price per meter) STD S5M-15mm common model (price per meter) STD S5M-3mm common model (price per meter) HTD 8M-12mm common model (price per meter) ) HTD 8M-15mm common (price per meter) HTD 8M-20mm common (price per meter) STD S8M-12mm common (price per meter) STD S8M-15mm common (price per meter) STD S8M-20mm common Model (price per meter) HTD 5M-12mm five same models (price per meter) HTD 5M-20mm five same models (price per meter) RPP P5M-12mm five same models (price per meter) STD S5M-15mm five same models ( Price per meter) STD S5M-12mm five same models (price per meter) HTD 5M-15mm five same models (price per meter)
Type: Timing Belt

标价是每米的价格，需要几米拍几件。The price is per meter, it takes a few meters to shoot a few pieces.本商品是根据米数切断的，属于定制商品，付款后不支持7天无理由退换货。This product is cut off according to the number of meters, and it is a customized product. It does not support 7-day return and exchange without reason after payment.若需特殊裁断联系客服或者备注，无备注默认按一整根发出。If you need special cutting, please contact customer service or remarks. If there is no remarks, it will be sent as a whole by default.

选项里面前面是具体齿形齿距，后面是宽度。The front of the options is the specific tooth pitch, and the back is the width.

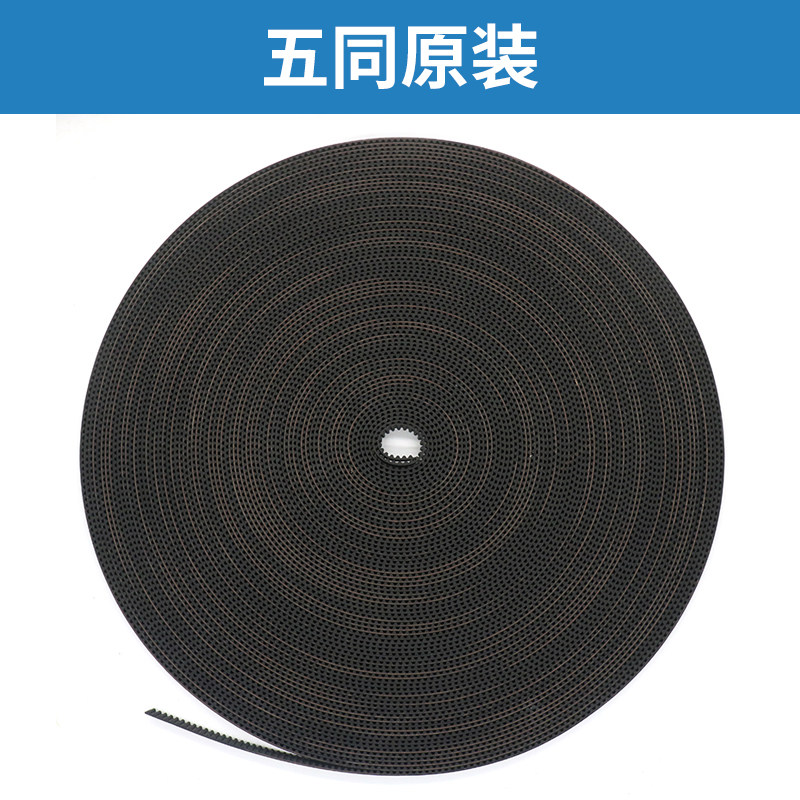

普通款材质是聚氨酯加钢丝，五同款材质是氯丁橡胶，五同给很多一线品牌电梯原装配套，质量更好，建议采购五同款。The common type is made of polyurethane and steel wire, and the Wutong type is made of neoprene. Wutong provides original equipment for many first-line brand elevators, and the quality is better. It is recommended to purchase the Wutong type.

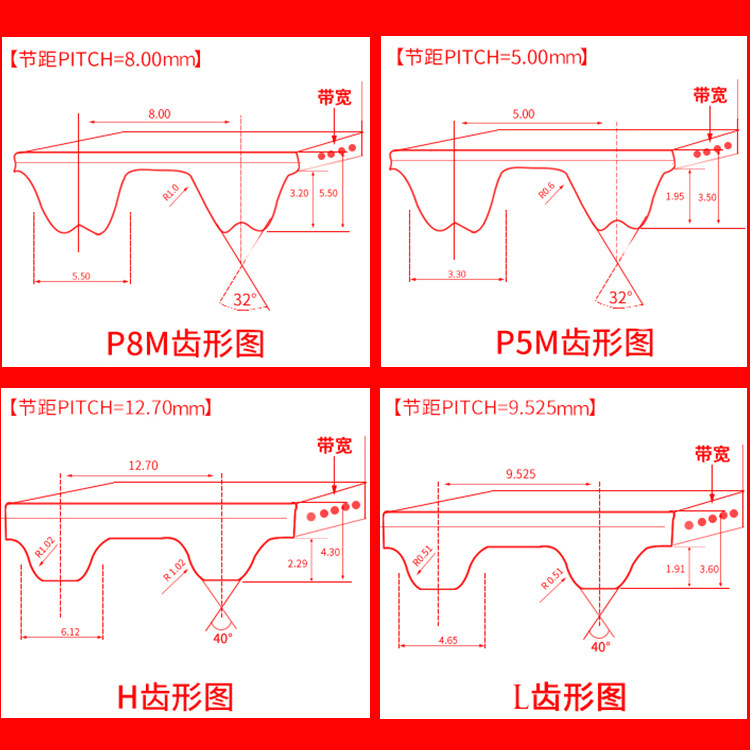

HTD是全圆弧齿（5M、8M、14M等属于HTD），STD是半圆弧齿（S5M、S8M、S14M等属于STD），RPP是圆弧齿但齿上有凹槽（RPP5M、RPP8M等属于RPP，其中RPP5M也简称P5M）。HTD is full arc tooth (5M, 8M, 14M, etc. belong to HTD), STD is semi-circular arc tooth (S5M, S8M, S14M, etc. belong to STD), RPP is arc tooth but there are grooves on the tooth (RPP5M, RPP8M, etc. It belongs to RPP, of which RPP5M is also referred to as P5M).不同齿形齿距不通用，比如5M和8M不通用，S5M和5M不通用。Different tooth pitches are not common, such as 5M and 8M are not common, S5M and 5M are not common.

购买方法：比如皮带上标记HTD 3200 5M，是指HTD 5M型号，3200mm即3.2米。How to buy: For example, the belt marked HTD 3200 5M refers to the HTD 5M model, 3200mm is 3.2 meters.再确认下宽度，购买我们的5M选项对应宽度，长度4米，需要收到自己再准确的切下尺寸并且封口做环形的。Then confirm the width, buy our 5M option corresponding to the width, the length is 4 meters, you need to receive it and then cut the size accurately and seal it to make a ring.
