Description
elevator special cross-flow fan fb-9b car top fan round 1042B-J3309K elevator accessories

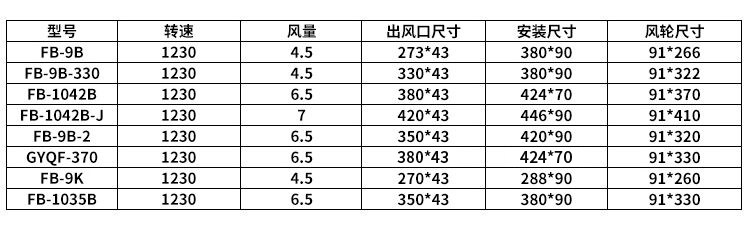

classification: FB-9B (220V)
FB-9B (110V)
FB-9B-330 and
Mitsubishi QF-330 general high-end models:
Guangya FB-9B (220V)
FB-1042B 220V hole spacing 424*70
FB-1042B- J 220V hole distance 446*90
FB-1035B 220V and QF-1035B general
FB-9B-2 (220V)
QYQF-370 220V and GF-971H general
FB-9B-3 (220V)
FB-9K (left 220V)
FB -9K (right 220V) round fan (220V)
FB-2B (220V) FB-9B separate motor 220V
Decoration and construction content: Installation works

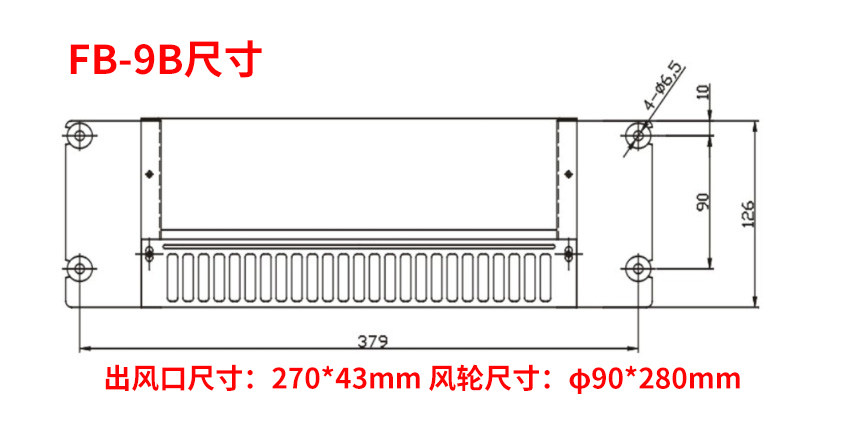

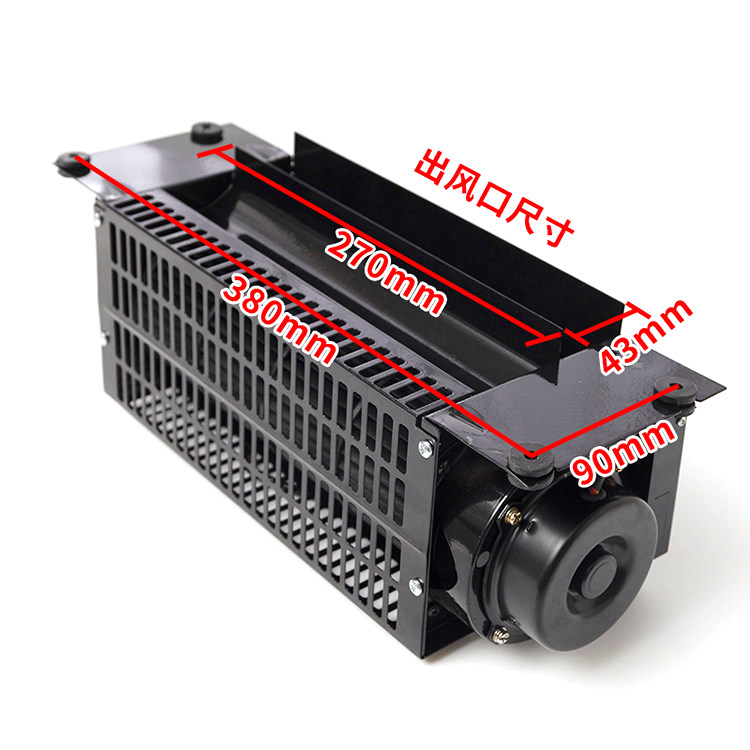

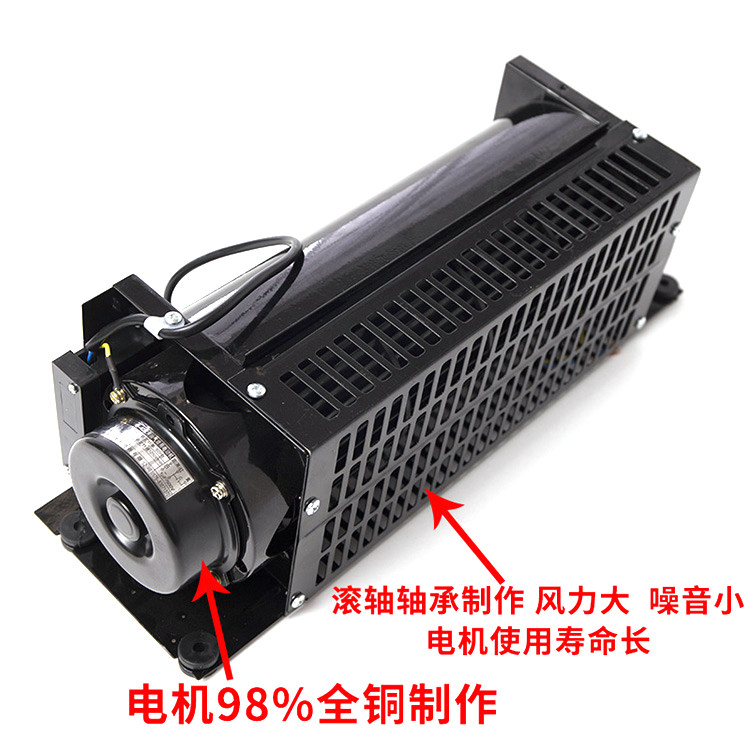

FB-9B whole machine warranty for 1 year, thermal protection motor, ball bearing. The default cable length of FB-9B is 0.5 meters. If you need to extend the cable, please contact customer service.
FB-9B-J is a plastic case, which can be used in common with the FB-9B sold by our store. FB-9K points, please consult customer service for details. FB-1042B has different mounting hole distances, ours is 424mm*70mm, please buy it after confirmation.

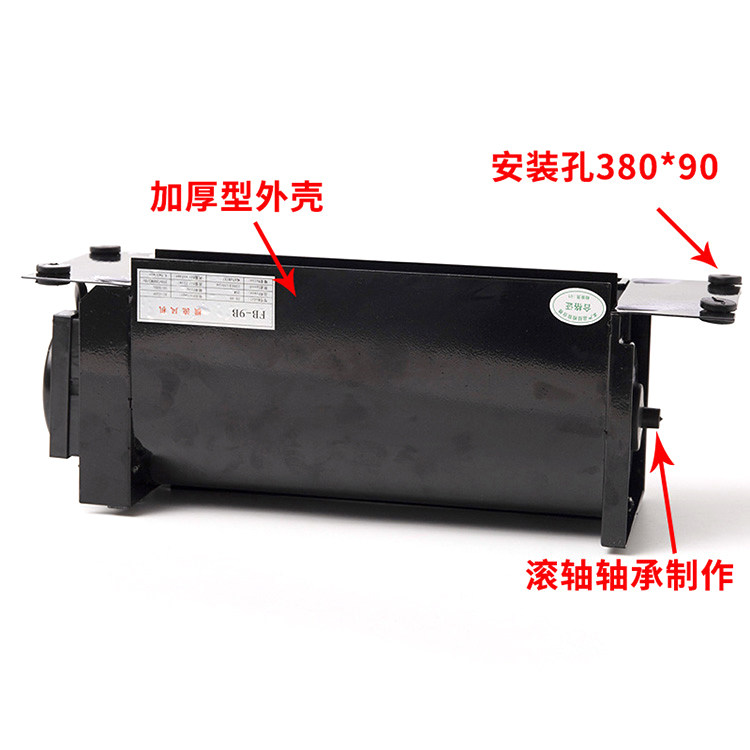

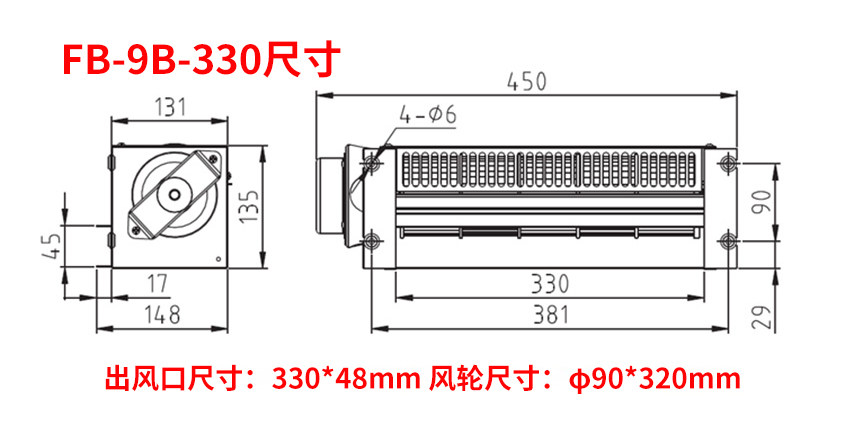

This FB-9B-330 220V can replace the original model ZQF330 200 220V, and QF-330 220V (not for Yongda elevator, the installation hole is 380*90). The QF-330 used by Yongda elevator has different installation holes.
FB-9B-2 fan, the hole distance is 420*90, and the air outlet is 350*43. FB-9B-3 fan, hole pitch 495*90, air outlet 330*43
